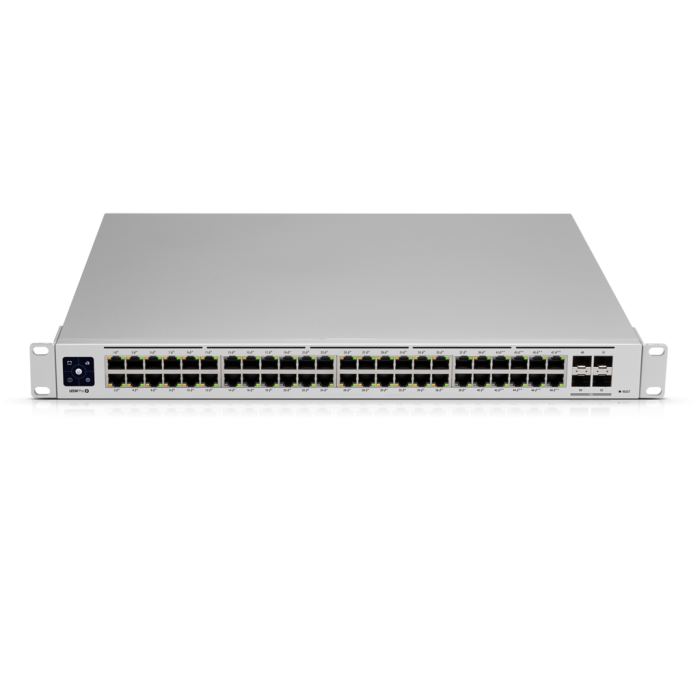

48-portno stikalo s (40) 802.3at PoE+ porti, (8) 802.3bt PoE++ porti in (4) 10 GB SFP+ porti.
Specifikacije:
(8) Gigabit RJ45 802.3bt PoE++ vrata
(40) Gigabit RJ45 802.3at PoE+ vrata
(4) 10G SFP+ vrata
Layer 2 and Layer 3 features
600W maximum PoE power
UniFi SmartPower RPS DC input
Near-silent cooling
1.3″ zaslon na dotik
Managed by UniFi Network Controller
Dimenzije: 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72″)
Teža: 6.25 kg
Teža z okvirjem za Rack montažo: 6.34 kg
Spletna stran zdelka: KLIK
| Mechanical | |
| Dimensions | 442.4 x 399.6 x 43.7 mm |
| (17.42 x 15.73 x 1.72″) | |
| Weight | 6.25 kg (13.78 lb) |
| With Rackmount Brackets | 6.34 kg (13.98 lb) |
| Interfaces | (48) 10/100/1000 RJ45 Ports |
| Networking | (4) 1/10G SFP+ Ethernet Ports |
| Management | Ethernet In-Band |
| Power Method | |
| Universal Input | 100-240VAC/50-60 Hz |
| USP RPS DC Input | 52VDC, 11.54A; 11.5VDC, 5.22A |
| Power Supply | AC/DC, Internal, 660W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 60W |
| LEDs | |
| System | Status |
| RJ45 Data Ports | PoE; Speed/Link/Activity |
| SFP Data Ports | Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Sound Level* | |
| 25% PoE Load, 25° C Room Temperature | 0.9 dBr |
| 50% PoE Load, 25° C Room Temperature | 7.3 dBr |
| 100% PoE Load, 40° C | 22.5 dBr |
| PoE | |
| PoE Interfaces | |
| Ports 1-40 | POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-) |
| Ports 41-48 | 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎 |
| Max. PoE Wattage per Port by PSE | |
| 802.3at | 32W |
| 802.3bt | 64W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
